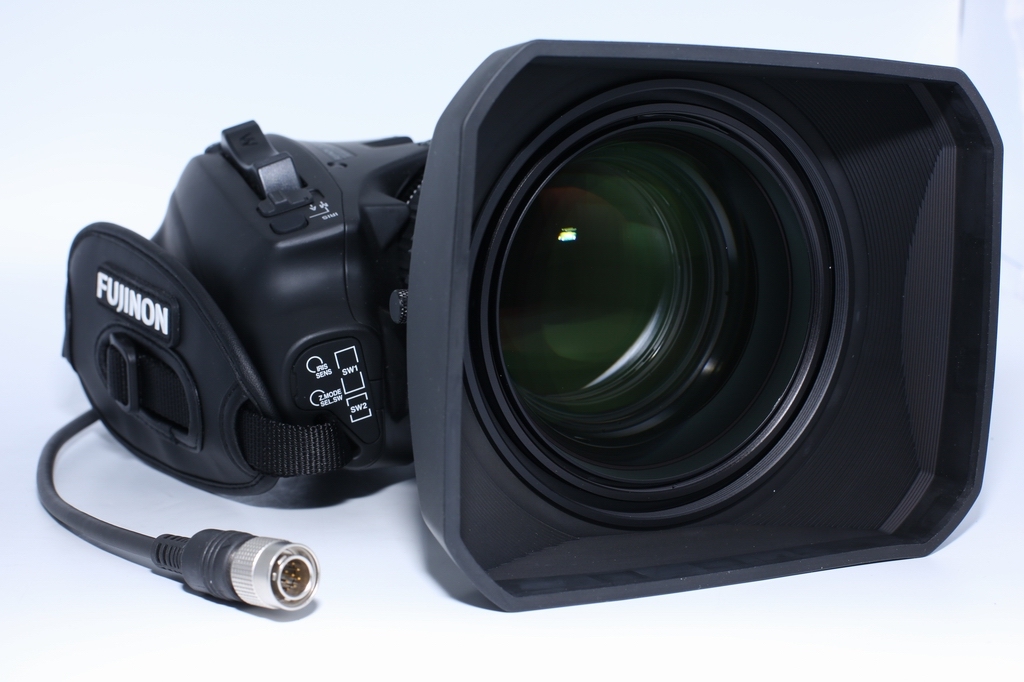

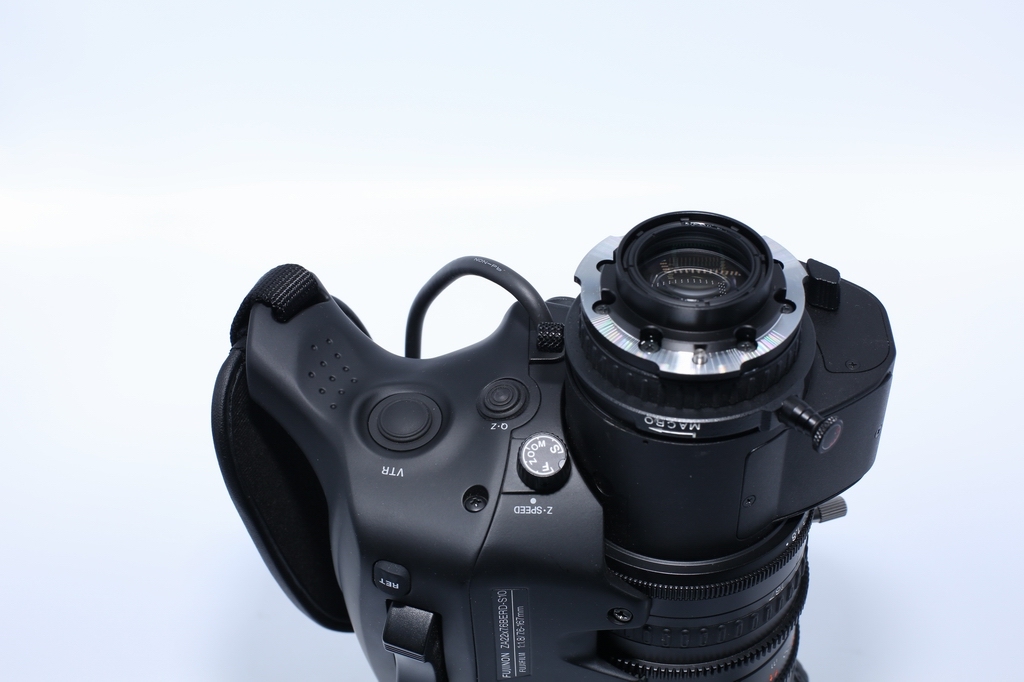

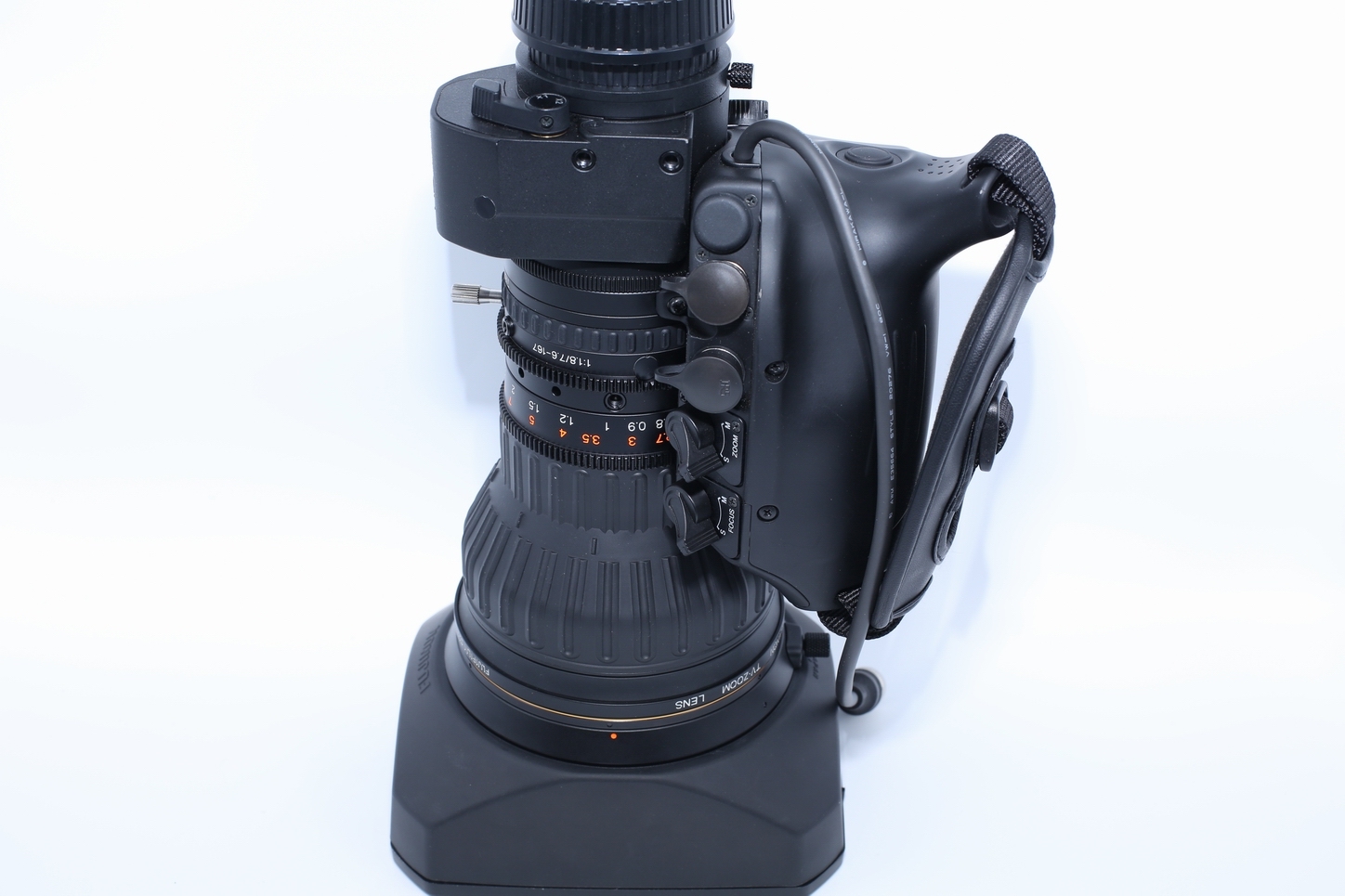

Product InformationThis is a Used Fujinon ZA22X7.6BERD-S10 2/3" HD Select Series Zoom Lens with 2x Extender & S10 Servo
The ZA22X7.6BERD-S10 2/3" HD Select Series Lens is a 7.6-167mm ENG-style lens that provides a high 22x zoom ratio for 2/3" cameras. This lens has a fast f/1.8 maximum aperture at 7.6-120mm. The ZA22X7.6BERD-S10 lens includes the ergonomic S10 digital servo for focus, iris, and zoom with 16-bit encoders compatible with virtual effects systems.
7.6-167mm wide to telephoto zoom lens for 2/3" cameras
22x zoom ratio and 2x extender
- The S10 digital servo can output 16-bit focus, iris, and zoom positional data that is compatible with virtual systems
- Breathing compensation technology negates any need to reframe after focusing
- The compact, ergonomic S10 drive enables comfortable, stable capture
Fast f/1.8 max aperture at 7.6-120mm and f/2.5 at 167mm
specifications
| Camera Format |
2/3″ |
| Focal Length |
1 × |
7.6 - 167 mm |
| 2 × |
15.2 - 334 mm |
| Zoom Range |
22 × |
| Extender |
2 × |
| Maximum Relative Aperture |
1 : 1.8 (7.6 - 120 mm)
1 : 2.5 (167 mm) |
| Maximum Photometric Aperture T-No. |
1 : 1.9 (7.6 - 120 mm)
1 : 2.6 (167 mm) |
| M.O.D. from the Image Plane |
1.07 m |
| M.O.D. from the Front of Lens |
0.8 m |
Object dimensions at M.O.D.
16 : 9 Aspect ratio |
1 × |
7.6 mm 915 × 514 mm
167 mm 43 × 24 mm |
| 2 × |
15.2 mm 473 × 266 mm
334 mm 22 × 12 mm |
Angular field of view
16 : 9 Aspect ratio |
1 × |
7.6 mm 64°30′ × 39°03′
167 mm 3°17′ × 1°51′ |
| 2 × |
15.2 mm 35°01′ × 20°07′
334 mm 1°39′ × 0°55′ |
| Macro |
Available |
| Filter thread |
M95 × 1 / M107 × 1 * |
| Diameter × Length |
100 × 222.6 mm |
| Weight (Lens hood excluded) |
1.82 k |
Features
7.6-167mm 22x Zoom for 2/3" Cameras
S10 Digital Servo with 16-Bit Encoders
Breathing Compensation, 2x Extender
Fast f/1.8 Max Aperture at 7.6-120mm
HD High Optical Performance
Enhanced Zoom and Focus Response
Compact, Ergonomic Grip
About the lens

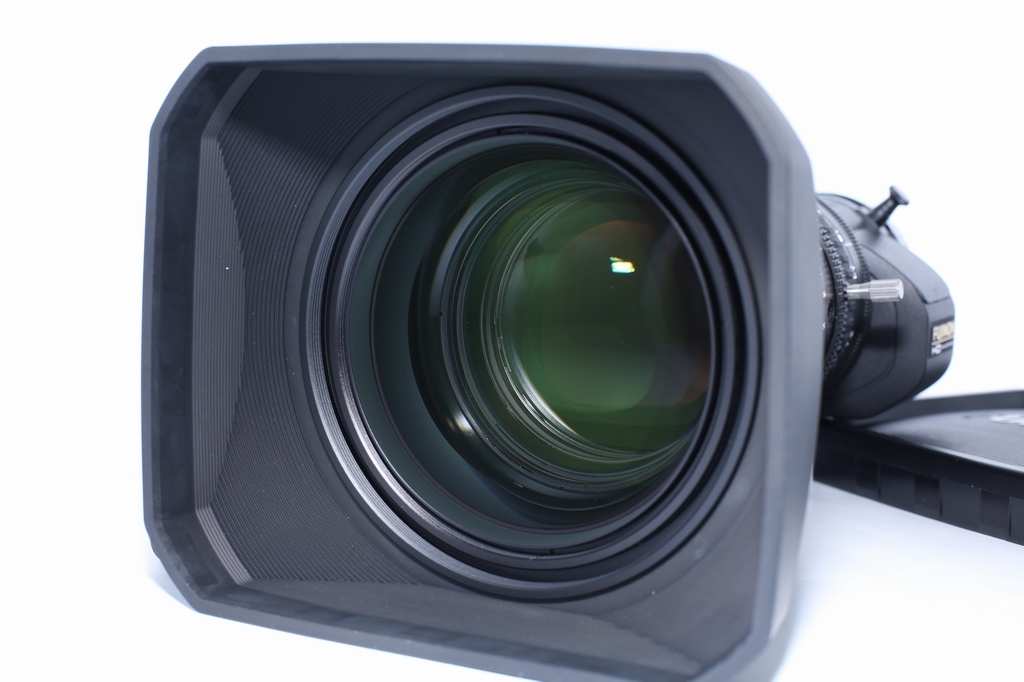

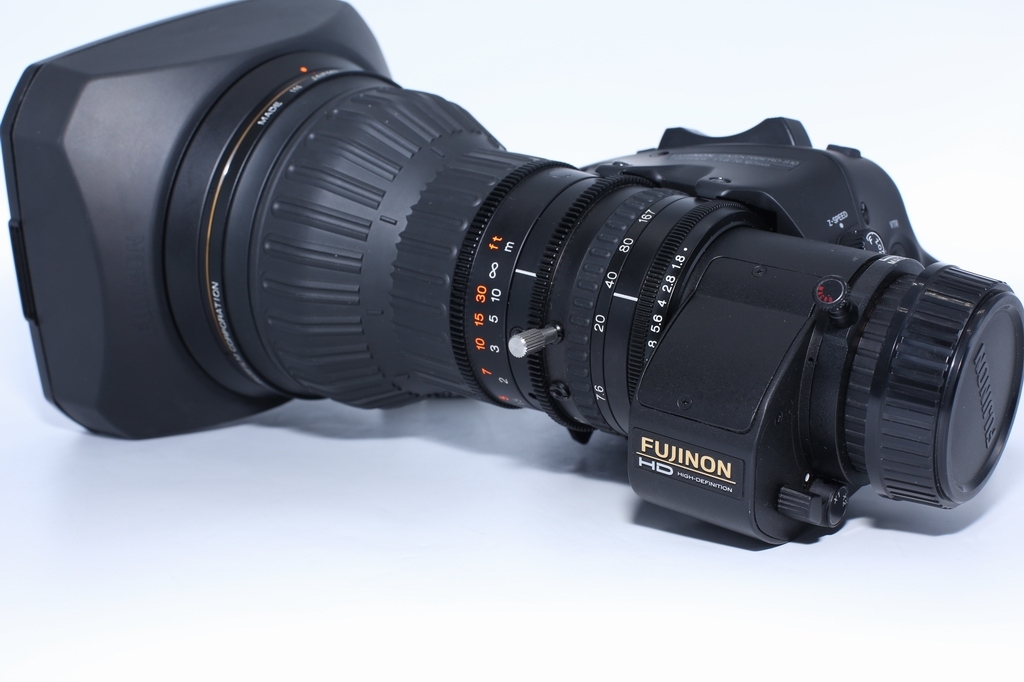

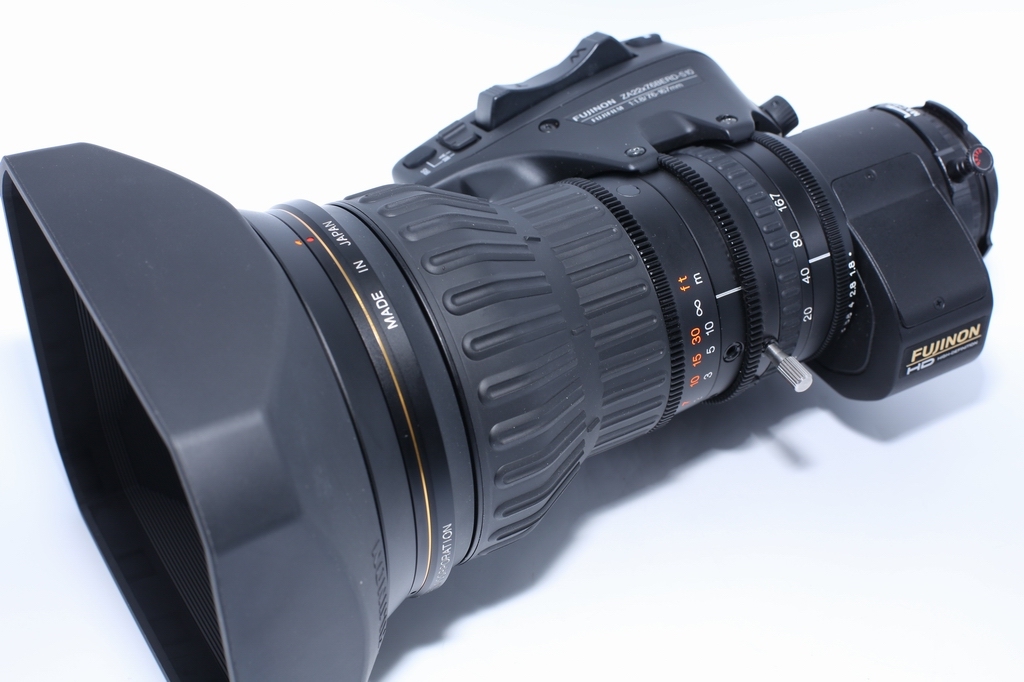

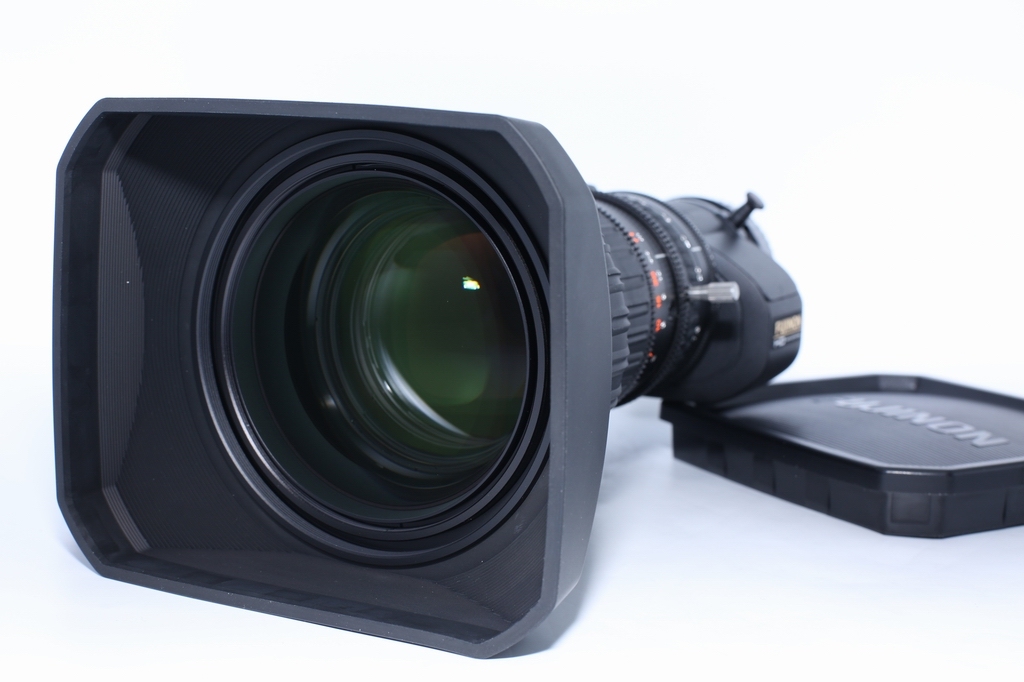

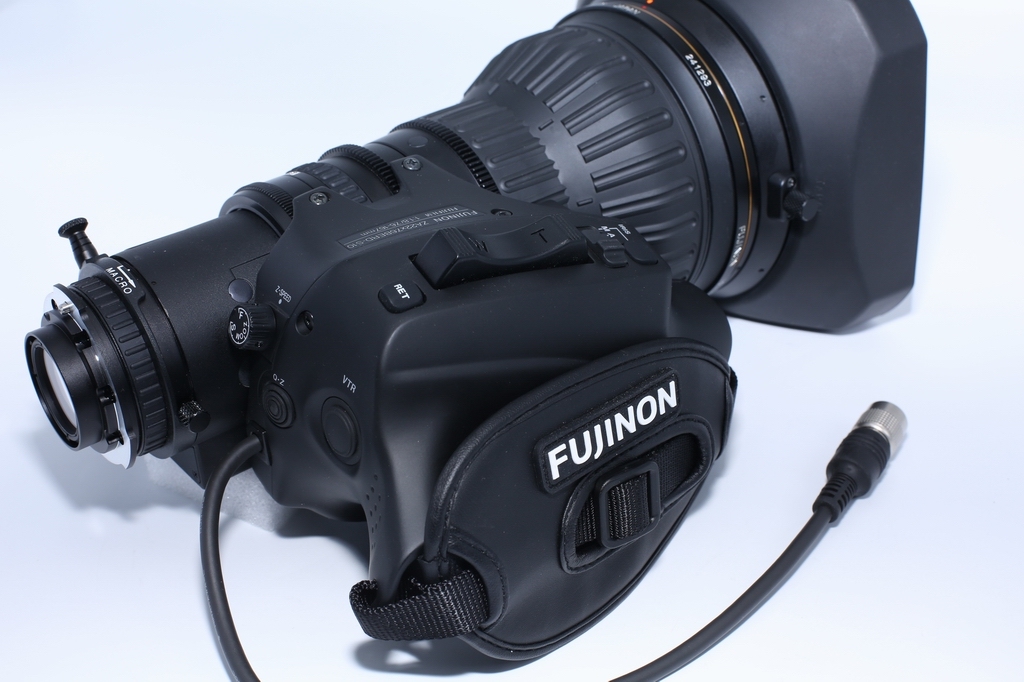

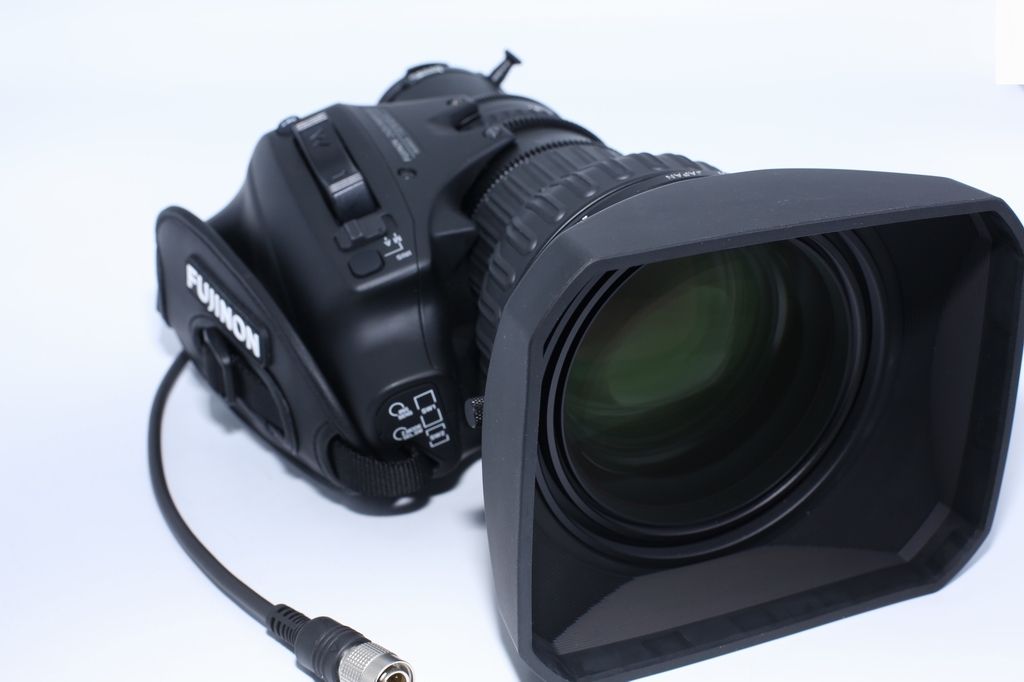

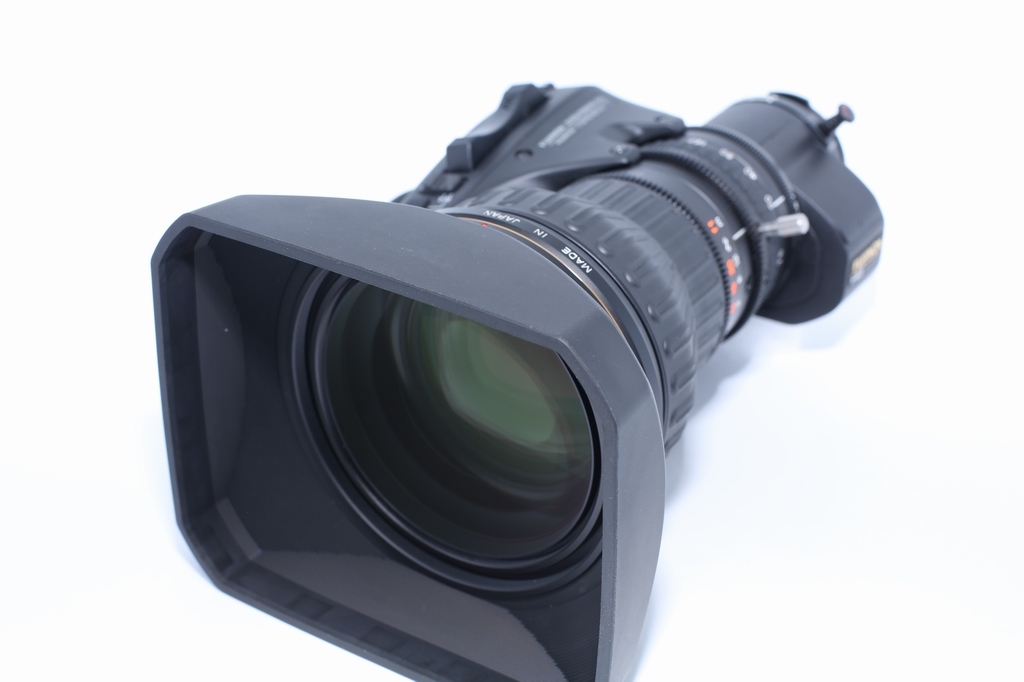

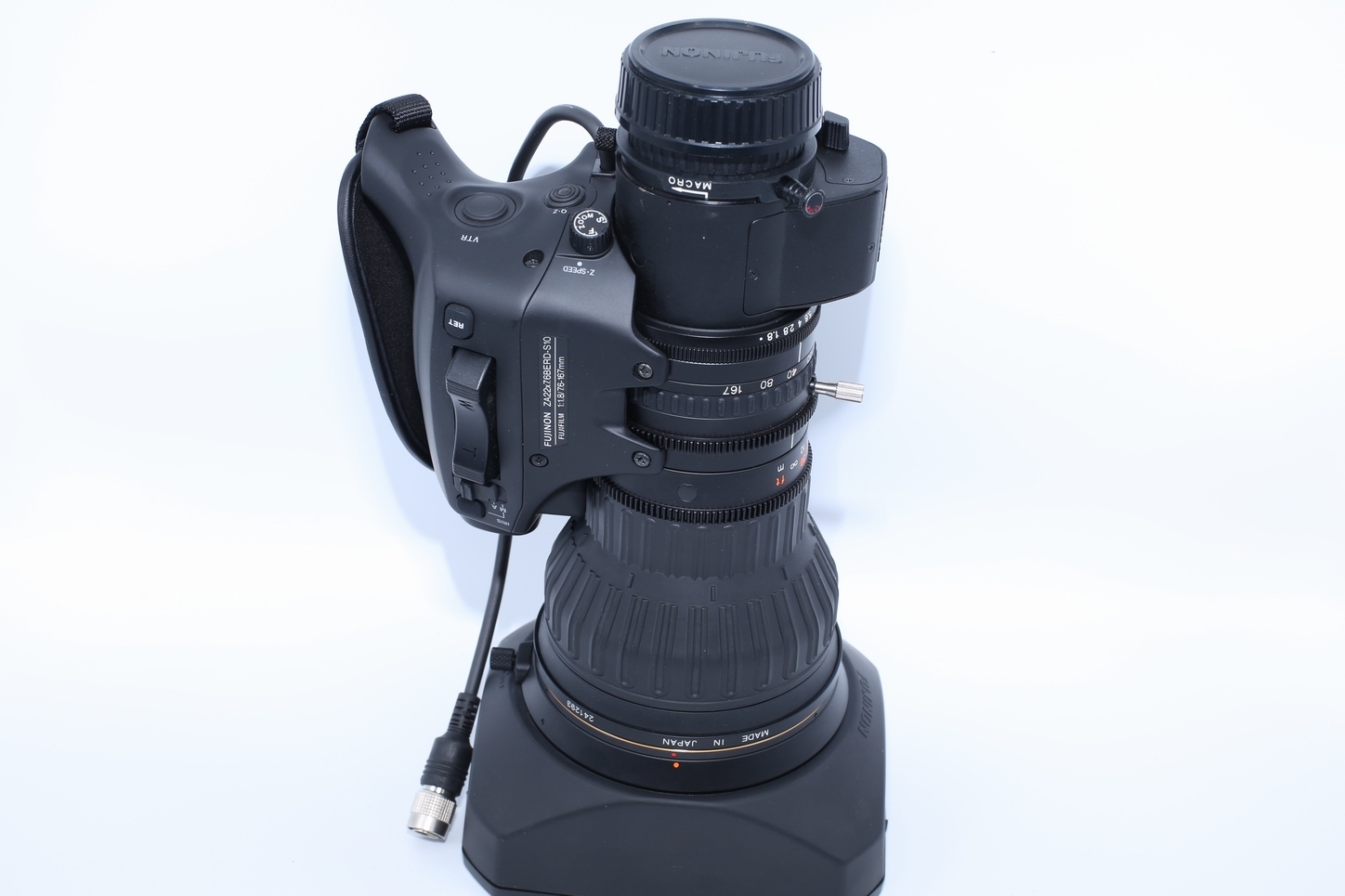

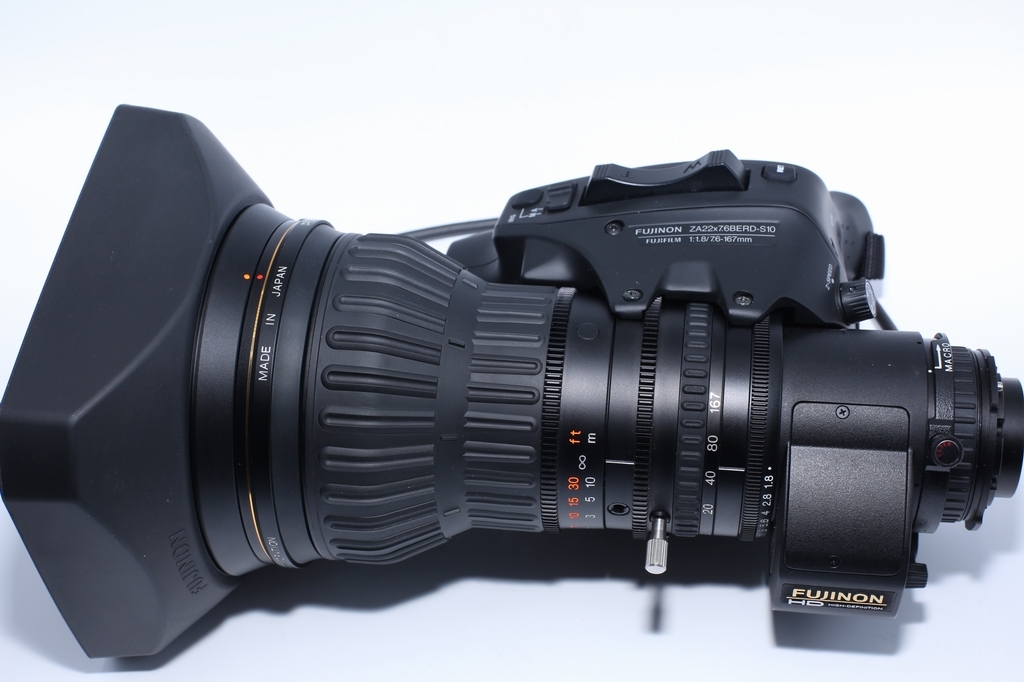

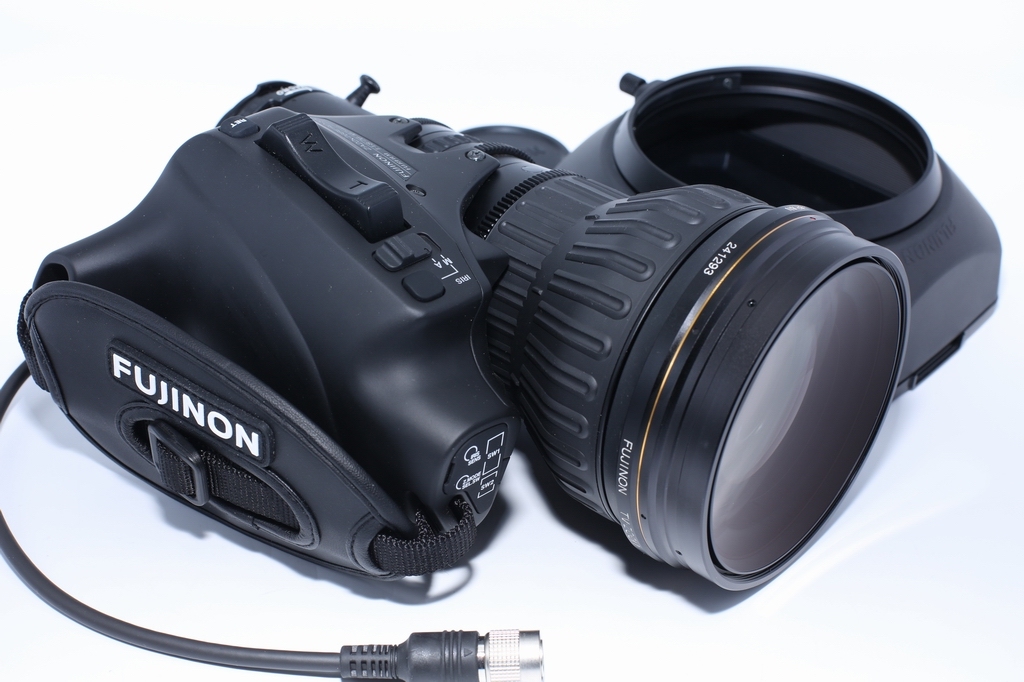

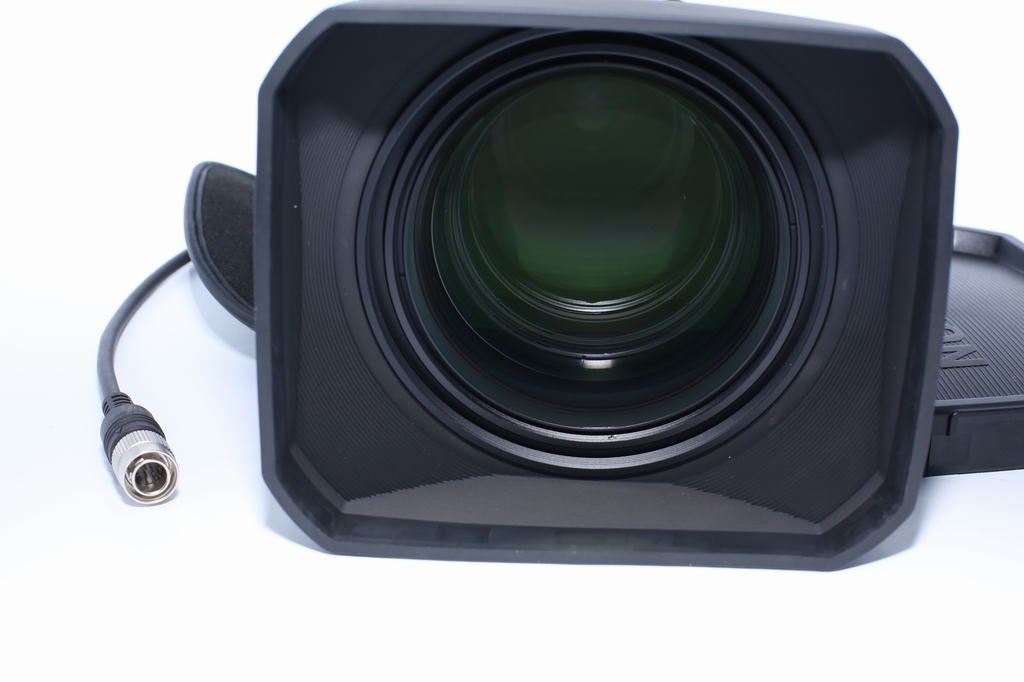

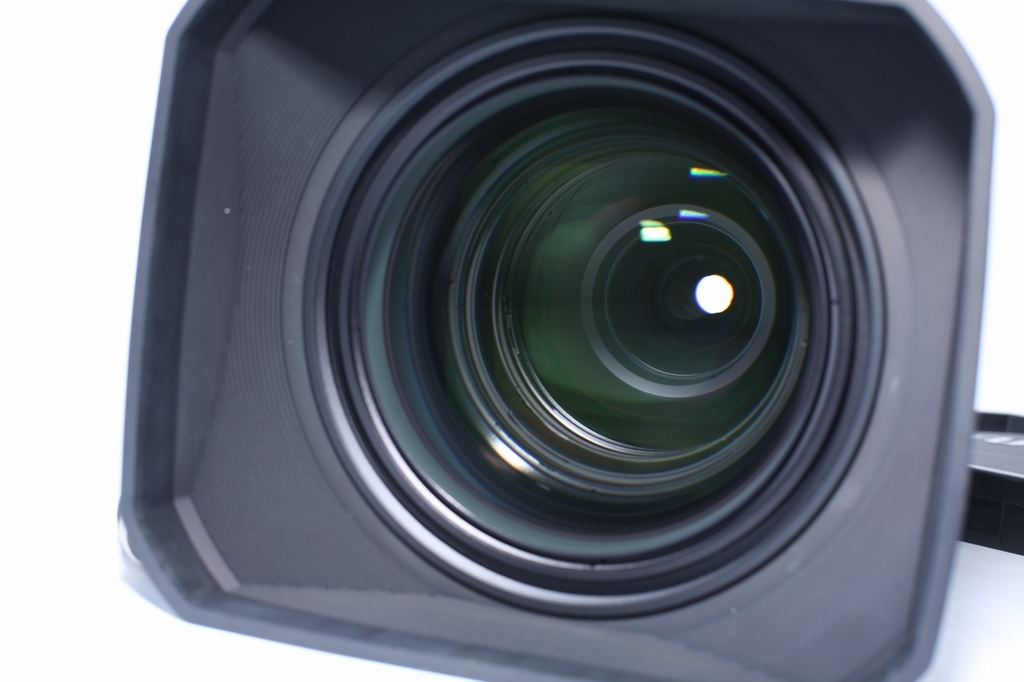

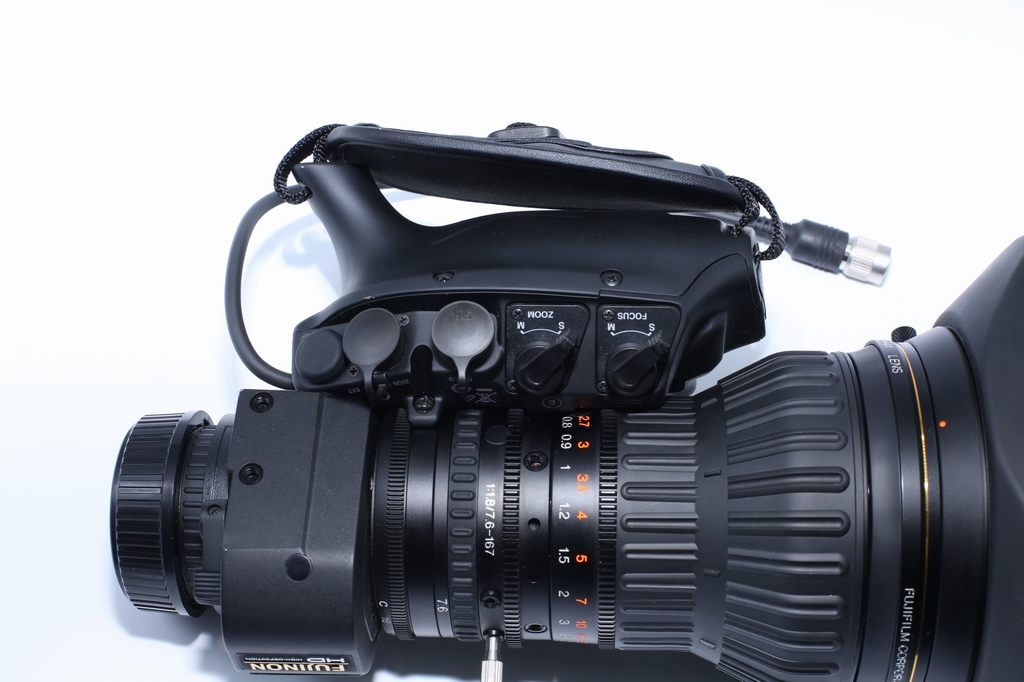

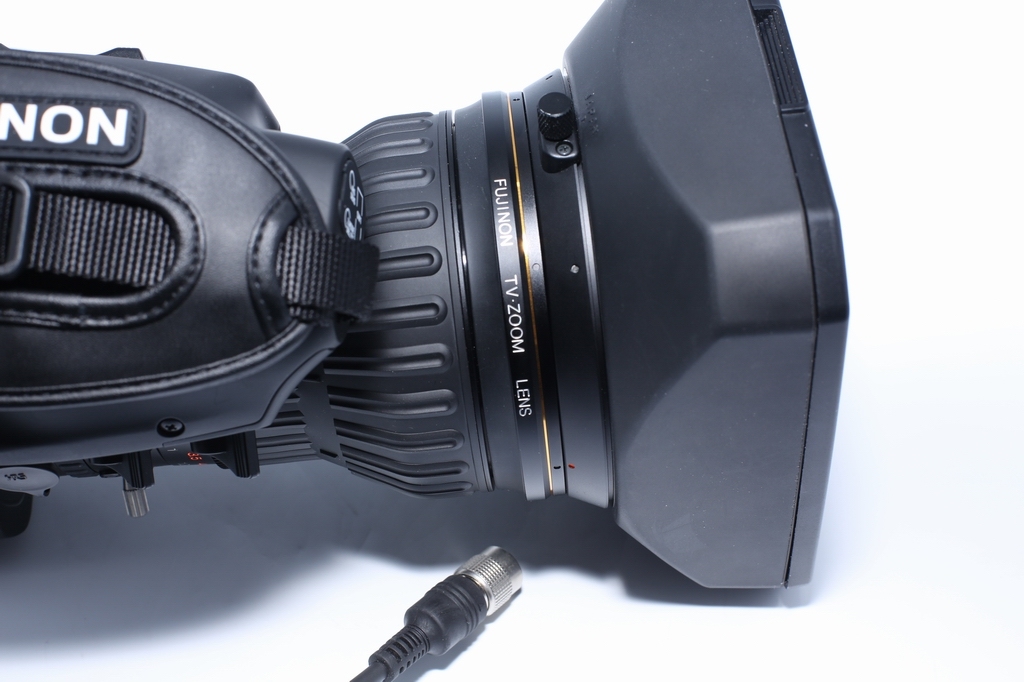

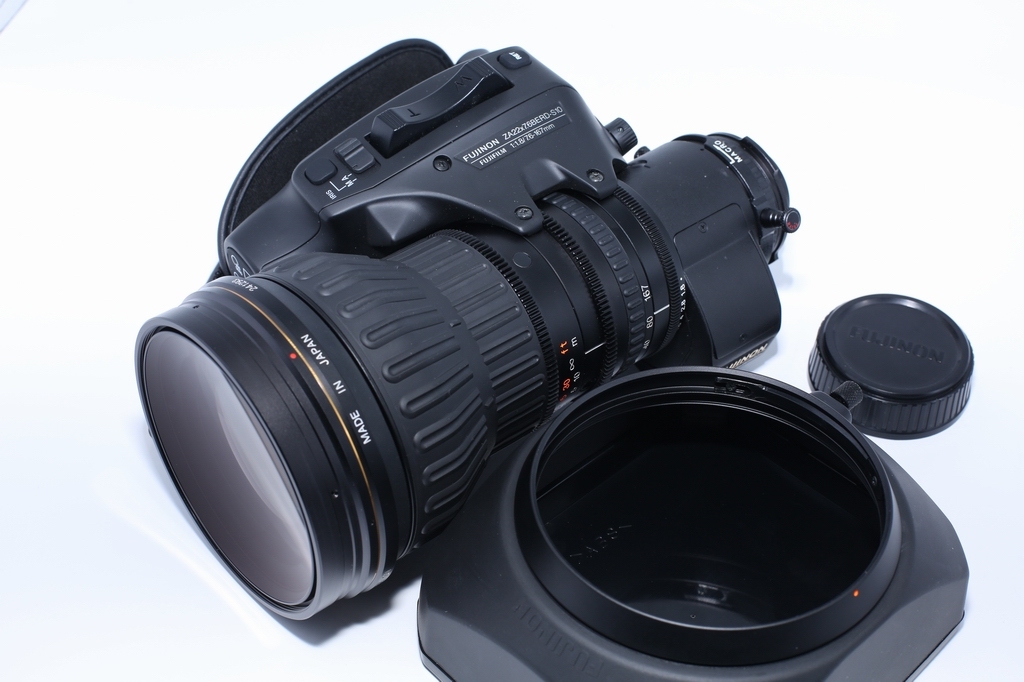

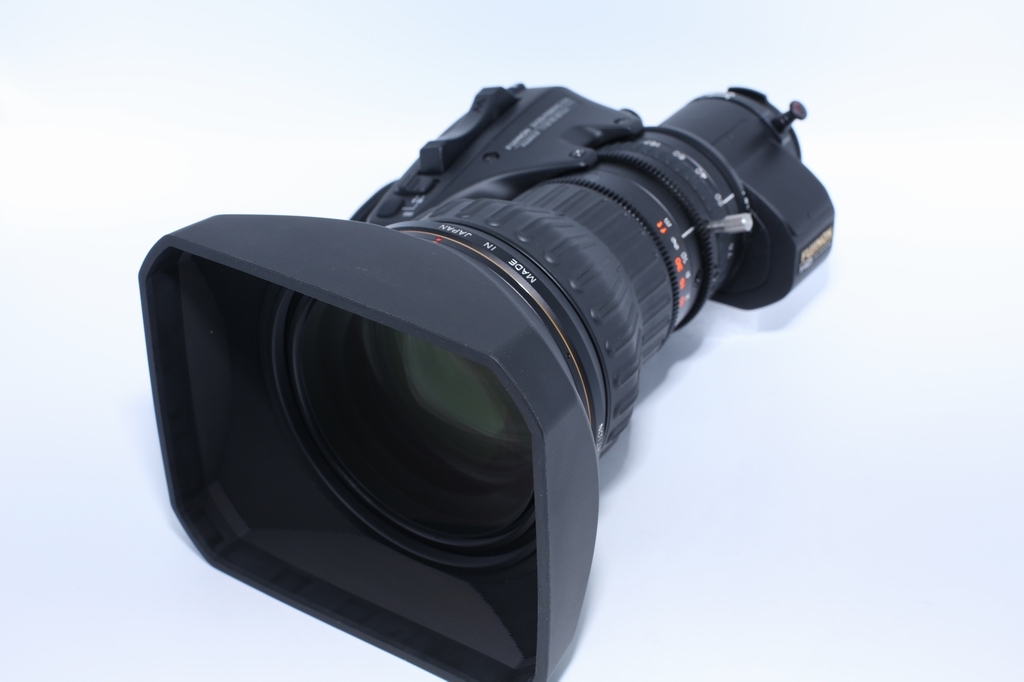

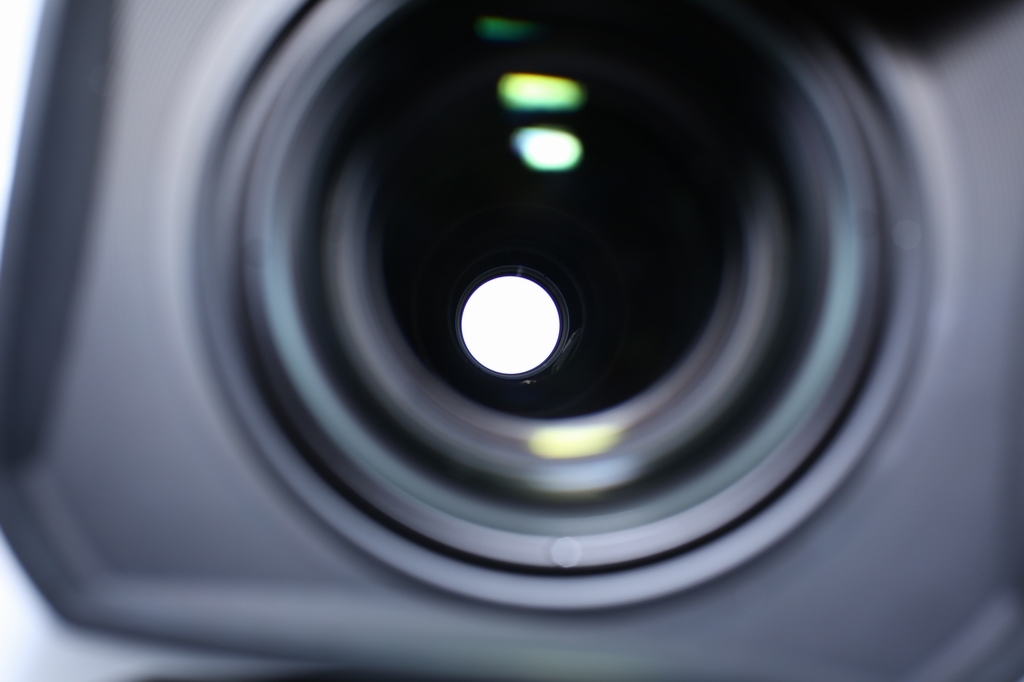

the glass lens is clean and clear (no haze, fungus, or blurryness) The zoom/focus/iris rings move smoothly The lens is in excellent condition.All functions have been tested and are in perfect working order. All pictures are of the actual item being sold. Please refer to the pictures
Shipping & Delivery
We will use a combination of shipping carriers to ensure the safest, quickest delivery of your items
In-stock items usually arrive within 7-15 business days,
We transport using reliable companies. DHL UPS, Fedex,
depending on your location. Your shopping cart will display an estimated delivery date for ease of reference.
Buy Please note
As the buyer, you should be aware of possible:
• Delays from customs inspection.
• Import duties and taxes which buyers must pay.
we are not responsible for local taxes and charges.
